WinSPC can export data to a comma separated variable file (CSV).  Excel has the capability to read a CSV file.  Export gives you the option to export either part specifications or part data.  This can be useful if you would like to duplicate a part to use at another facility, duplicate a part to run tests without changing the production part/data, output to a file to verify data, and many more.

Method 1

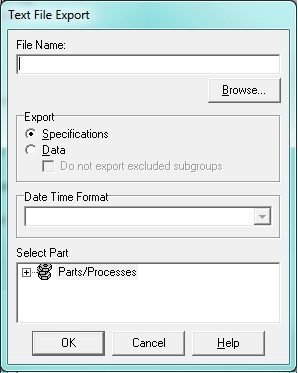

1. In the Administrator window of WinSPC, select File -> Export….
2. In the File Name text box, Browse to the directory where you would like to save the file, and type in a file name to save as.
3. In the Export box select what to export Specifications or Data.
4. If Data is selected then you will need to select the Date Time Format needed.
5. Under the Select Part box, drill down and select the part to export.
6. Click OK.

Method 2

1. In the Administrator window of WinSPC, expand the Parts/Processes list and right-click on a Part or Variable.
2. Select Save As…
3. Browse to the directory where you would like to save file, and type in a file name (if other than the default name).

Note: This file format in Method 2 cannot be used with the File --> Import… selection.
